Power Distribution Unit

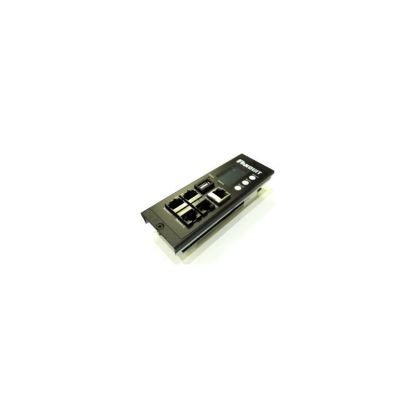

Panduit P22B09M. PDU types: Basic, Rack capacity: 0U, Type: Single-phase. AC outlets quantity: 22 AC outlet(s), AC outlet types: NEMA 5–20R, Power plug: NEMA L5-30P. Cable length: 118.1" (3 m). Nominal input voltage: 120 V, Maximum current: 30 A, Output voltage: 120 V. Dimensions (WxDxH): 2 x 2.1 x 32.2" (50.8 x 53.3 x 818 mm)

CyberPower PDU30BVHVT32F. PDU types: Basic, Rack capacity: 0U, Mounting: Horizontal/Vertical. AC outlets quantity: 32 AC outlet(s), Power plug: NEMA L6-30P. Cable length: 120.1" (3.05 m), Certification: UL60950_1 CSA C22.2. Nominal input voltage: 200-230 V, Maximum current: 30 A, AC input frequency: 50 - 60 Hz. Weight (imperial): 10 lbs, Dimensions (W x D x H) (imperial): 1.75 x 1.5 x 60"

Vertiv VSSBA204-102S20. PDU types: Basic, Mounting: Vertical, Product color: Black. AC outlets quantity: 20 AC outlet(s), AC outlet types: NEMA 5-20R, Power plug: NEMA 5-20P. LED indicators: Power, Cable length: 120.1" (3.05 m), Certification: RoHS Compliant UL & c-UL Listed 60950. Nominal input voltage: 100-120 V, Maximum current: 20 A, AC input frequency: 50/60 Hz. Width: 1.61" (41 mm), Depth: 1.61" (41 mm), Height: 66.2" (1682.8 mm)

Middle Atlantic Products PDT-615C. PDU types: Basic, Mounting: Vertical, Product color: Black. AC outlets quantity: 6 AC outlet(s), AC outlet types: NEMA 5–15P. Certification: ETL Listed. Nominal input voltage: 120 V, Maximum current: 15 A. Width: 1.57" (40 mm), Depth: 2.09" (53 mm), Height: 29.9" (759 mm)

Tripp Lite PDUH30HV. PDU types: Basic, Rack capacity: 0U/1U, Type: Single-phase. AC outlets quantity: 10 AC outlet(s), AC outlet types: C13 coupler, Power plug: NEMA L6-30P. Cable length: 144.1" (3.66 m). Nominal input voltage: 200 - 240 V, Maximum current: 30 A, AC input frequency: 50 - 60 Hz. Width: 17.3" (439.4 mm), Depth: 3.75" (95.2 mm), Dimensions (WxDxH): 17.3 x 3.75 x 1.69" (439 x 95.3 x 43 mm)

Vertiv VHVR120-102D20TL6. PDU types: Basic, Rack capacity: 0U, Type: Single-phase. AC outlets quantity: 12 AC outlet(s), AC outlet types: NEMA L6-20R, Power plug: NEMA L6-20P. Cable length: 120.1" (3.05 m), Certification: RoHS Compliant UL & c-UL Listed 60950. Nominal input voltage: 200-240 V, Maximum current: 20 A, AC input frequency: 50/60 Hz. Width: 17" (432 mm), Depth: 6.5" (165 mm), Height: 1.73" (44 mm)

Vertiv Geist NSVBAN200-102S20TL. PDU types: Metered, Rack capacity: 0U, Type: Single-phase. AC outlets quantity: 20 AC outlet(s), AC outlet types: NEMA 5-20R, Power plug: NEMA L5-20P. LED indicators: Power, Cable length: 118.1" (3 m), Certification: RoHS Compliant UL & c-UL Listed 60950. Monitoring: Current. Nominal input voltage: 100-120 V, Maximum current: 20 A, AC input frequency: 50/60 Hz

Middle Atlantic Products PDT-1415C-NS. PDU types: Basic, Mounting: Vertical, Product color: Black. AC outlets quantity: 14 AC outlet(s), AC outlet types: NEMA 5–15P. Cable length: 106.3" (2.7 m), Certification: ETL Listed. Nominal input voltage: 120 V, Maximum current: 15 A. Width: 1.57" (40 mm), Depth: 2.09" (53 mm), Height: 59.9" (1521 mm)

Vertiv Geist SPC104-1025TL. PDU types: Metered, Rack capacity: 0U, Type: Single-phase. AC outlets quantity: 10 AC outlet(s), AC outlet types: NEMA 5-20R, Power plug: NEMA L5-20P. LED indicators: Power, Cable length: 120.1" (3.05 m), Certification: RoHS Compliant UL & c-UL Listed 60950. Monitoring: Power. Nominal input voltage: 100-120 V, Maximum current: 20 A, AC input frequency: 50/60 Hz

Vertiv Geist SPFAN104-1025. PDU types: Metered, Rack capacity: 0U, Type: Single-phase. AC outlets quantity: 10 AC outlet(s), AC outlet types: NEMA 5-20R, Power plug: NEMA L5-20P. LED indicators: Power, Cable length: 118.1" (3 m), Certification: RoHS Compliant UL & c-UL Listed 60950. Monitoring: Current. Nominal input voltage: 100-120 V, Maximum current: 20 A, AC input frequency: 50/60 Hz

Vertiv SPFC104-1025. PDU types: Basic, Mounting: Horizontal, Product color: Black. AC outlets quantity: 10 AC outlet(s), AC outlet types: NEMA 5-20R, Power plug: NEMA 5-20P. Cable length: 120.1" (3.05 m), Certification: RoHS UL & c-UL Listed 60950. Nominal input voltage: 100-120 V, Maximum current: 20 A, AC input frequency: 50/60 Hz. Width: 17" (431.8 mm), Depth: 4.5" (114.3 mm), Height: 1.72" (43.6 mm)

Vertiv VSSBC204-101S15. PDU types: Basic, Mounting: Horizontal/Vertical, Product color: Black. AC outlets quantity: 20 AC outlet(s), AC outlet types: NEMA 5-15R, Power plug: NEMA L5-15P. LED indicators: Power, Cable length: 120.1" (3.05 m), Certification: RoHS Compliant UL & c-UL Listed 60950. Nominal input voltage: 100-120 V, Maximum current: 15 A, AC input frequency: 50/60 Hz. Width: 1.61" (41 mm), Depth: 1.61" (41 mm), Height: 66.2" (1682.8 mm)

Tripp Lite PDUMH30-ISO. PDU types: Metered. Width: 18.9" (479 mm), Depth: 4.83" (122.7 mm), Height: 1.72" (43.7 mm). Package weight: 9.81 lbs (4.45 kg), Package width: 20.3" (515.1 mm), Package depth: 11.2" (285 mm). Country of origin: Taiwan, Master (outer) case width: 21.1" (537 mm), Master (outer) case length: 13.3" (337.1 mm)

Eaton TPC2234-A2-F. PDU types: Switched, Rack capacity: 1U, Mounting: Horizontal. AC outlets quantity: 8 AC outlet(s), AC outlet types: NEMA 5–20R, Power plug: NEMA 5–20P. Cable length: 78.7" (2 m). Nominal input voltage: 120 V, Maximum current: 16 A, AC input frequency: 50 - 60 Hz. Dimensions (WxDxH): 19 x 4.49 x 1.69" (482 x 114 x 43 mm)

C2G 6m ST-ST. Cable length: 236.2" (6 m), Fiber optic type: OM2, Connector 1: ST, Connector 2: ST, Core diameter: 50 µm, Full duplex

Tripp Lite PDUMH30. PDU types: Metered, Rack capacity: 1U, Mounting: Horizontal. AC outlets quantity: 12 AC outlet(s), AC outlet types: NEMA 5–15R, NEMA 5–20R, Power plug: NEMA L5-30P. Cable length: 179.9" (4.57 m), Certification: UL60950-1 (USA) and CAN/CSA C22.2 No. 60950-1-03 (Canada). Nominal input voltage: 100-127 V, Maximum current: 30 A, AC input frequency: 50 - 60 Hz. Width: 17.5" (444.5 mm), Depth: 6.5" (165.1 mm), Dimensions (WxDxH): 17.5 x 6.5 x 1.75" (445 x 165 x 44.5 mm)

Vertiv NSVBC200-102S20. PDU types: Basic, Rack capacity: 0U, Type: Single-phase. AC outlets quantity: 14 AC outlet(s), AC outlet types: NEMA 5-20R, Power plug: NEMA 5-20P. LED indicators: Power, Cable length: 120.1" (3.05 m), Certification: RoHS Compliant UL & c-UL Listed 60950. Nominal input voltage: 100-120 V, Maximum current: 20 A, AC input frequency: 50/60 Hz. Width: 1.61" (41 mm), Depth: 1.61" (41 mm), Height: 47.5" (1206 mm)

Tripp Lite PDUV30. PDU types: Basic, Rack capacity: 0U, Type: Single-phase. AC outlets quantity: 24 AC outlet(s), AC outlet types: NEMA 5–15, NEMA 5–20R, Power plug: NEMA L5-30P. Cable length: 120.1" (3.05 m). Nominal input voltage: 100 - 127 V, Maximum current: 30 A, AC input frequency: 50/60 Hz. Width: 2.19" (55.6 mm), Depth: 3.75" (95.2 mm), Height: 63.7" (1619.2 mm)
