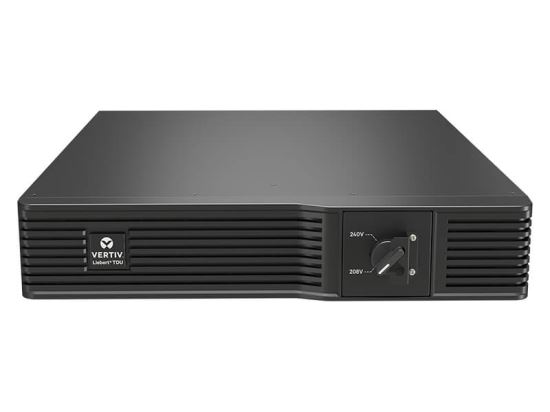

Vertiv Liebert TDU-6000RTL630 uninterruptible power supply (UPS) 5.05 kVA 5050 W 10 AC outlet(s)1

Vertiv Liebert TDU-6000RTL630 uninterruptible power supply (UPS) 5.05 kVA 5050 W 10 AC outlet(s)

Vertiv Liebert TDU-6000RTL630. Output power capacity: 5.05 kVA, Output power: 5050 W, Input operation voltage (min): 200 V. AC outlet types: NEMA 5–15, NEMA 5–20R, AC outlets quantity: 10 AC outlet(s). Form factor: Rackmount, Product color: Black, Housing material: Metal, Plastic. Compliance certificates: REACH, RoHS. Safety: UL, cUL (cULus) Listed (to UL 1778 or applicable UL Standard for transformer based PDUs)

Manufacturer: Vertiv

SKU: 5467650

Manufacturer part number: TDU-6000RTL630

GTIN: 0636430087597

The Vertiv Liebert Transformer Distribution Unit (TDU) is a step down transformer / voltage converter that provides 120VAC output power from 208VAC or 240VAC input. It accepts 208 or 240VAC (200/220/230 VAC acceptable) input and converts it to 120VAC (L-N) output. The 3440VA/3440W TDU is designed to work with Vertiv Liebert GXT3-6000RTL630, GXT4-6000RTL630, GXT4-3000RT208, and PSI5-5000RT208 but can be used with other UPS products with 208VAC in & out, and have a compatible input power plug.

Overview
Specifications
Contact Us

Products specifications

Attribute name	Attribute value
Width	16.9"
Depth	22.6"
Height	3.35"
Housing Material	Metal, Plastic
Automatic Voltage Regulation (AVR)	Yes
EMI/RFI noise filtering	Yes
Compliance certificates	REACH, RoHS
Features
Rack capacity	2U
Safety	UL, cUL (cULus) Listed (to UL 1778 or applicable UL Standard for transformer based PDUs)
Output power	5050 W
Noise level	55 dB
Input operation voltage (min)	200 V
Input operation voltage (max)	240 V
Output operation voltage (min)	120 V
Output operation voltage (max)	127 V
Efficiency	94 %
Design
Form factor	Rackmount
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Operating altitude	0 - 118110.2"
Ports & interfaces
AC outlets quantity	10 AC outlet(s)
AC outlet types	NEMA 5–15, NEMA 5–20R
Technical details
Product color	Black
Power
Output power capacity	5.05 kVA
