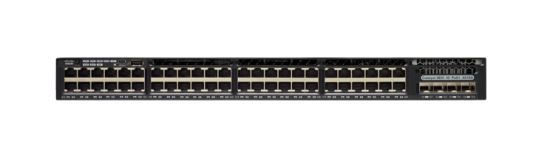

Cisco Catalyst WS-C3650-48TQ-L Managed L3 Gigabit Ethernet (10/100/1000) 1U Black1
Cisco Catalyst WS-C3650-48TQ-L Managed L3 Gigabit Ethernet (10/100/1000) 1U Black1
Cisco Catalyst WS-C3650-48TQ-L Managed L3 Gigabit Ethernet (10/100/1000) 1U Black2

Cisco Catalyst WS-C3650-48TQ-L Managed L3 Gigabit Ethernet (10/100/1000) 1U Black

Cisco Catalyst WS-C3650-48TQ-L. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. Full duplex. MAC address table: 32000 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Rack mounting, Form factor: 1U
Manufacturers: Cisco , CISCO SYSTEMS CAPITAL REMARKET
SKU: 11354733
Manufacturer part number: WS-C3650-48TQ-L-RF
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Width17.5"
Depth17.6"
Height1.73"
Weight15.9 lbs
Switch TypeManaged
StackableYes
Switching capacity176 Gbit/s
Number of VLANs4094
SFP+ module slots quantity4
Harmonized System (HS) code85176990
DHCP featuresDHCP server
Link aggregationYes
Access Control List (ACL)Yes
SSH/SSL supportYes
IGMP snoopingYes
IP routingYes
Rate limitingYes
Features
Internal memory4096 MB
Full duplexYes
SafetyUL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, GOST, NOM
LED indicatorsYes
Bandwidth160 Gbit/s
Noise level48 dB
Mean time between failures (MTBF)527580 h
Memory typeDRAM
Design
Form factor1U
Operational conditions
Operating temperature (T-T)-5 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)5 - 96 %
Operating altitude0 - 59055.1"
Non-operating altitude0 - 196850.4"
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Performance
Networking standardsIEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Auto MDI/MDI-XYes
Network
Multicast supportYes
Jumbo frames supportYes
10G supportYes
Quality of Service (QoS) supportYes
VLAN supportYes
Spanning tree protocolYes
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Management features
Web-based managementYes
Switch layerL3
Technical details
Product colorBlack
Power
Power consumption (typical)90.47 W
AC input voltage100 - 240 V
Number of power supply units1
Redundant power supply (RPS) supportYes
Other features
Rack mountingYes
MAC address table32000 entries
Memory
Flash memory2000 MB
*
*
*
Products specifications
Attribute nameAttribute value
Width17.5"
Depth17.6"
Height1.73"
Weight15.9 lbs
Switch TypeManaged
StackableYes
Switching capacity176 Gbit/s
Number of VLANs4094
SFP+ module slots quantity4
Harmonized System (HS) code85176990
DHCP featuresDHCP server
Link aggregationYes
Access Control List (ACL)Yes
SSH/SSL supportYes
IGMP snoopingYes
IP routingYes
Rate limitingYes
Features
Internal memory4096 MB
Full duplexYes
SafetyUL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, GOST, NOM
LED indicatorsYes
Bandwidth160 Gbit/s
Noise level48 dB
Mean time between failures (MTBF)527580 h
Memory typeDRAM
Design
Form factor1U
Operational conditions
Operating temperature (T-T)-5 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)5 - 96 %
Operating altitude0 - 59055.1"
Non-operating altitude0 - 196850.4"
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Performance
Networking standardsIEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Auto MDI/MDI-XYes
Network
Multicast supportYes
Jumbo frames supportYes
10G supportYes
Quality of Service (QoS) supportYes
VLAN supportYes
Spanning tree protocolYes
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Management features
Web-based managementYes
Switch layerL3
Technical details
Product colorBlack
Power
Power consumption (typical)90.47 W
AC input voltage100 - 240 V
Number of power supply units1
Redundant power supply (RPS) supportYes
Other features
Rack mountingYes
MAC address table32000 entries
Memory
Flash memory2000 MB
