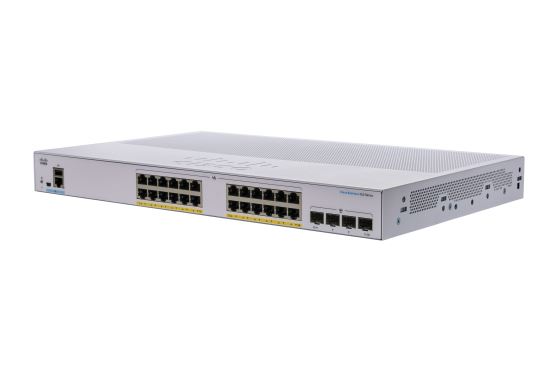

Cisco CBS350-24P-4G-BR network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Silver1
Cisco CBS350-24P-4G-BR network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Silver1
Cisco CBS350-24P-4G-BR network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Silver2
Cisco CBS350-24P-4G-BR network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Silver3
Cisco CBS350-24P-4G-BR network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Silver4
Cisco CBS350-24P-4G-BR network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Silver5
Cisco CBS350-24P-4G-BR network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Silver6
Cisco CBS350-24P-4G-BR network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Silver7

Cisco CBS350-24P-4G-BR network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Silver

Cisco CBS350-24P-4G-BR. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, USB 2.0 ports quantity: 1. MAC address table: 16000 entries. Networking standards: IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE.... Power over Ethernet (PoE). Rack mounting
Manufacturers: Cisco , Cisco Systems
SKU: 7303750
Manufacturer part number: CBS350-24P-4G-BR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
The Cisco Business CBS350-24P-4G switch is part of the fully managed switch line that delivers reliable and secure connectivity for small business networks. These switches accelerate your digital transformation by delivering full Layer 2/3 capabilities, intuitive web dashboard, advanced networking features, and PoE+ support.
The Cisco Business CBS350-24P-4G switch is part of the fully managed switch line that delivers reliable and secure connectivity for small business networks. These switches accelerate your digital transformation by delivering full Layer 2/3 capabilities, intuitive web dashboard, advanced networking features, and PoE+ support.
Products specifications
Attribute nameAttribute value
Country of OriginChina
Width11.8"
Depth17.5"
Height1.73"
Weight8.07 lbs
Switch TypeManaged
SFP module slots quantity4
Built-in processorYes
MAC address filteringYes
Power supply includedYes
Number of VLANs4094
Harmonized System (HS) code85176990
Static routeYes
Market segmentBusiness
Combo SFP ports quantity4
Port mirroringYes
Broadcast storm controlYes
DHCP featuresDHCP relay, DHCP server, DHCPv6 client
Link aggregationYes
Access Control List (ACL)Yes
SSH/SSL supportYes
IGMP snoopingYes
MIB supportY
GARP VLAN Registration Protocol (GVRP)Yes
ARP inspectionYes
Configuring Location Settings (CLI)Yes
IPv4 & IPv6 featuresIPv6 First Hop Security​ (FHS)
AuthenticationGuest VLAN, Web-based authentication
Head-of-line (HOL) blockingYes
Access Control List (ACL) rules1024
IP Source Guard (IPSG)Yes
Cloud-managedYes
Features
Internal memory512 MB
LED indicatorsYes
Password protectionYes
Packaging content
Quantity per pack1 pc(s)
Operational conditions
Operating temperature (T-T)-5 - 50 °C
Storage temperature (T-T)-25 - 70 °C
Operating relative humidity (H-H)10 - 90 %
Storage relative humidity (H-H)10 - 90 %
Ports & interfaces
USB 2.0 ports quantity1
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Power over Ethernet (PoE) ports quantity24
Performance
Networking standardsIEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3z
Auto MDI/MDI-XYes
Reset buttonYes
Processor frequency800 MHz
Firmware upgradeableYes
Network
Ethernet LAN data rates10,100,1000 Mbit/s
Multicast supportYes
Jumbo frames supportYes
Jumbo frames9000
10G supportYes
Quality of Service (QoS) supportYes
VLAN supportYes
Spanning tree protocolYes
Security
Security algorithms802.1x RADIUS
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Management features
Web-based managementYes
Switch layerL2/L3
Technical details
Product colorSilver
Flow control supportYes
Power
AC input frequency50 Hz
AC input voltage100 - 240 V
Power plug typeType C
Total Power over Ethernet (PoE) budget195 W
Power supply locationInternal
Other features
Rack mountingYes
MAC address table16000 entries
Protocols
Management protocolsSNMP
Memory
Flash memory256 MB
Packaging data
Package width16.9"
Package depth22.6"
Package height4.17"
Package weight12 lbs
Logistics data
Quantity per shipping (inner) case1 pc(s)
Quantity per master (outer) case1 pc(s)
*
*
*
Products specifications
Attribute nameAttribute value
Country of OriginChina
Width11.8"
Depth17.5"
Height1.73"
Weight8.07 lbs
Switch TypeManaged
SFP module slots quantity4
Built-in processorYes
MAC address filteringYes
Power supply includedYes
Number of VLANs4094
Harmonized System (HS) code85176990
Static routeYes
Market segmentBusiness
Combo SFP ports quantity4
Port mirroringYes
Broadcast storm controlYes
DHCP featuresDHCP relay, DHCP server, DHCPv6 client
Link aggregationYes
Access Control List (ACL)Yes
SSH/SSL supportYes
IGMP snoopingYes
MIB supportY
GARP VLAN Registration Protocol (GVRP)Yes
ARP inspectionYes
Configuring Location Settings (CLI)Yes
IPv4 & IPv6 featuresIPv6 First Hop Security​ (FHS)
AuthenticationGuest VLAN, Web-based authentication
Head-of-line (HOL) blockingYes
Access Control List (ACL) rules1024
IP Source Guard (IPSG)Yes
Cloud-managedYes
Features
Internal memory512 MB
LED indicatorsYes
Password protectionYes
Packaging content
Quantity per pack1 pc(s)
Operational conditions
Operating temperature (T-T)-5 - 50 °C
Storage temperature (T-T)-25 - 70 °C
Operating relative humidity (H-H)10 - 90 %
Storage relative humidity (H-H)10 - 90 %
Ports & interfaces
USB 2.0 ports quantity1
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Power over Ethernet (PoE) ports quantity24
Performance
Networking standardsIEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3z
Auto MDI/MDI-XYes
Reset buttonYes
Processor frequency800 MHz
Firmware upgradeableYes
Network
Ethernet LAN data rates10,100,1000 Mbit/s
Multicast supportYes
Jumbo frames supportYes
Jumbo frames9000
10G supportYes
Quality of Service (QoS) supportYes
VLAN supportYes
Spanning tree protocolYes
Security
Security algorithms802.1x RADIUS
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Management features
Web-based managementYes
Switch layerL2/L3
Technical details
Product colorSilver
Flow control supportYes
Power
AC input frequency50 Hz
AC input voltage100 - 240 V
Power plug typeType C
Total Power over Ethernet (PoE) budget195 W
Power supply locationInternal
Other features
Rack mountingYes
MAC address table16000 entries
Protocols
Management protocolsSNMP
Memory
Flash memory256 MB
Packaging data
Package width16.9"
Package depth22.6"
Package height4.17"
Package weight12 lbs
Logistics data
Quantity per shipping (inner) case1 pc(s)
Quantity per master (outer) case1 pc(s)
