Cisco CBS220-48P-4G Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) White

Cisco CBS220-48P-4G. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Installed SFP modules quantity: 4. MAC address table: 8192 entries, Switching capacity: 104 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x, IEEE 802.3at, IEEE 802.3z,.... Power over Ethernet (PoE). Rack mounting

Manufacturers: Cisco , Cisco Systems

SKU: 6315349

Manufacturer part number: CBS220-48P-4G-NA

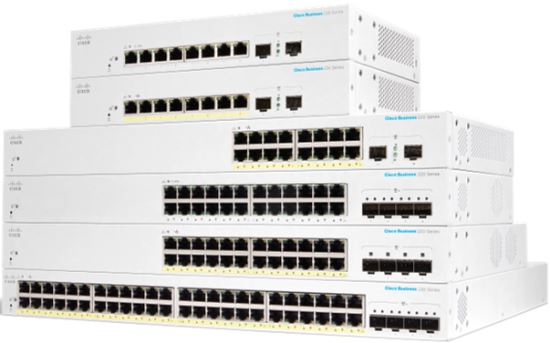

The Cisco Business 220 Series are affordable smart switches with ease of use, security, and reliability for business-class networks. With intuitive dashboard, Power over Ethernet (PoE) options, and customizable features, these switches deliver a solid business network within your budget parameters. When you need a business-class network and cost is top priority, Cisco Business 220 Series provides an excellent solution.

With Cisco Business 220 Series switches, you can not only build an efficient and reliable network to connect the workforce, you can also create advanced solutions to deliver data, voice, and video services on a converged infrastructure. Get the best value for your money by improving the productivity of employees.

Cisco Business 220 Series provides capabilities that help you create business-class networks. These features deliver a solution to simplify the operation, increase uptime, and get your business better connected to employees, customers, and suppliers.

Overview
Specifications
Contact Us

Products specifications

Attribute name	Attribute value
Width	17.3"
Depth	10.1"
Height	1.73"
Weight	11.7 lbs
Switch Type	Managed
MAC address filtering	Yes
Installed SFP modules quantity	4
Installed SFP+ modules quantity	0
Switching capacity	104 Gbit/s
Number of VLANs	256
Port mirroring	Yes
Broadcast storm control	Yes
DHCP features	DHCP client
Link aggregation	Yes
Access Control List (ACL)	Yes
SSH/SSL support	Yes
IGMP snooping	Yes
MIB support	Y
Number of multicast groups filtered	256
GARP VLAN Registration Protocol (GVRP)	Yes
Loop protection	Yes
Configuring Location Settings (CLI)	Yes
BPDU filtering/protection	Yes
Head-of-line (HOL) blocking	Yes
Access Control List (ACL) rules	512
IGMP entries	256
Features
Number of fans	1 fan(s)
LED indicators	Yes
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	10 - 90 %
Storage relative humidity (H-H)	10 - 90 %
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power over Ethernet (PoE) ports quantity	48
Performance
Networking standards	IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x, IEEE 802.3at, IEEE 802.3z, IEEE 802.1D, IEEE 802.1w, IEEE 802.1x
Auto MDI/MDI-X	Yes
Reset button	Yes
Firmware upgradeable	Yes
Network
Multicast support	Yes
Jumbo frames support	Yes
Jumbo frames	9216
10G support	No
Quality of Service (QoS) support	Yes
VLAN support	Yes
Spanning tree protocol	Yes
Security
Security algorithms	SSL/TLS
System event log	Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Management features
Web-based management	Yes
Switch layer	L2
Technical details
Product color	White
Flow control support	Yes
Power
Total Power over Ethernet (PoE) budget	382 W
Other features
Rack mounting	Yes
MAC address table	8192 entries
Protocols
Management protocols	SNMP
