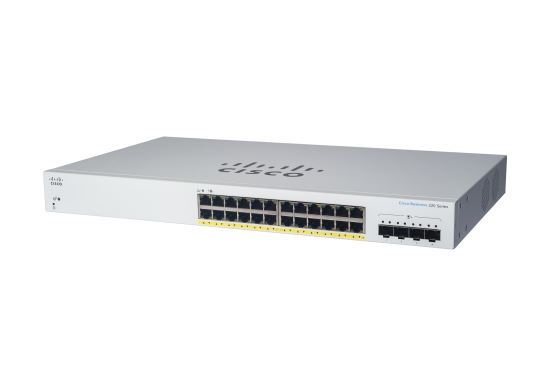

Cisco CBS220-24P-4G Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U White1
Cisco CBS220-24P-4G Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U White1
Cisco CBS220-24P-4G Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U White2
Cisco CBS220-24P-4G Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U White3
Cisco CBS220-24P-4G Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U White4
Cisco CBS220-24P-4G Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U White5
Cisco CBS220-24P-4G Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U White6
Cisco CBS220-24P-4G Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U White7

Cisco CBS220-24P-4G Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U White

Cisco CBS220-24P-4G. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8192 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Manufacturers: Cisco Systems , Cisco
SKU: 7518717
Manufacturer part number: CBS220-24P-4GEU-RF
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
The Cisco Business CBS220-24P-4G switch is simple and affordable smart switch for business-class network. CBS220 series bridge the gap between the affordability of an unmanaged device and the ease-of-use of smart switches. With their intuitive dashboard, mobile app support, and multiple Power over Ethernet (PoE) options, these switches deliver a solid business network.
The Cisco Business CBS220-24P-4G switch is simple and affordable smart switch for business-class network. CBS220 series bridge the gap between the affordability of an unmanaged device and the ease-of-use of smart switches. With their intuitive dashboard, mobile app support, and multiple Power over Ethernet (PoE) options, these switches deliver a solid business network.
Products specifications
Attribute nameAttribute value
Country of OriginChina
Width10.1"
Depth17.3"
Height1.73"
Weight8.97 lbs
Switch TypeManaged
Heat dissipation833.59 BTU/h
SFP module slots quantity4
Built-in processorYes
MAC address filteringYes
Installed SFP modules quantity0
Installed SFP+ modules quantity0
Switching capacity56 Gbit/s
Number of VLANs256
Harmonized System (HS) code85176990
Market segmentBusiness
Port mirroringYes
Broadcast storm controlYes
DHCP featuresDHCP client
Link aggregationYes
Access Control List (ACL)Yes
SSH/SSL supportYes
IGMP snoopingYes
Number of queues8
IP routingYes
Forwarding rate41.66 Mpps
Queue scheduling algorithmsWeighted Round Robin (WRR)
GARP VLAN Registration Protocol (GVRP)Yes
Loop protectionYes
BPDU filtering/protectionYes
Multicast MAC address table8192 entries
Head-of-line (HOL) blockingYes
Authentication typeIEEE 802.1x, RADIUS
Features
Internal memory256 MB
Number of fans1 fan(s)
LED indicatorsYes
Packaging content
Quantity per pack1 pc(s)
Design
Form factor1U
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)10 - 90 %
Storage relative humidity (H-H)10 - 90 %
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Performance
Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Auto MDI/MDI-XYes
Reset buttonYes
Firmware upgradeableYes
Network
Ethernet LAN data rates10,100,1000 Mbit/s
Multicast supportYes
Jumbo frames supportYes
Jumbo frames9216
10G supportYes
Quality of Service (QoS) supportYes
VLAN supportYes
Spanning tree protocolYes
Security
Security algorithmsSSH, SSH-2, SSL/TLS
System event logYes
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Management features
Web-based managementYes
Switch layerL2
Technical details
Product colorWhite
Flow control supportYes
Power
AC input voltage100 - 240 V
Power plug typeType C
Total Power over Ethernet (PoE) budget195 W
Other features
Rack mountingYes
MAC address table8192 entries
Protocols
Management protocolsSNMP v1/2c/3, Telnet, TFTP, HTTP/HTTPS, SNTP
Memory
Flash memory64 MB
Packaging data
Package width16.5"
Package depth22.6"
Package height4.3"
Package weight13.2 lbs
Data transmission
Packet buffer memory4.1 MB
Logistics data
Quantity per shipping (inner) case1 pc(s)
Quantity per master (outer) case1 pc(s)
*
*
*
