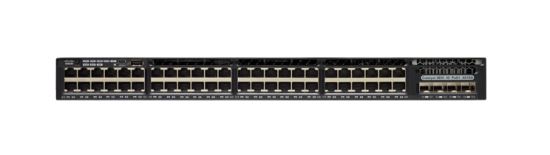

Cisco Catalyst WS-C3650-48TD-L Managed L3 Gigabit Ethernet (10/100/1000) 1U Black1
Cisco Catalyst WS-C3650-48TD-L Managed L3 Gigabit Ethernet (10/100/1000) 1U Black1
Cisco Catalyst WS-C3650-48TD-L Managed L3 Gigabit Ethernet (10/100/1000) 1U Black2

Cisco Catalyst WS-C3650-48TD-L Managed L3 Gigabit Ethernet (10/100/1000) 1U Black

Cisco Catalyst WS-C3650-48TD-L. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. Full duplex. MAC address table: 32000 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Rack mounting, Form factor: 1U
Manufacturers: Cisco , CISCO SYSTEMS CAPITAL REMARKET
SKU: 11420297
Manufacturer part number: WS-C3650-48TD-L-RF
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
The Cisco Catalyst® 3650 Series is the next generation of enterprise-class standalone and stackable access-layer switches that provide the foundation for full convergence between wired and wireless on a single platform. The Cisco Catalyst 3650 is built on the advanced Cisco StackWise®-160, and takes advantage of the new Cisco® Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC). This switch can enable uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. The Cisco Catalyst 3650 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), and offer modular and field-replaceable redundant fans and power supplies. They can help you increase wireless productivity and reduce your TCO.
The Cisco Catalyst® 3650 Series is the next generation of enterprise-class standalone and stackable access-layer switches that provide the foundation for full convergence between wired and wireless on a single platform. The Cisco Catalyst 3650 is built on the advanced Cisco StackWise®-160, and takes advantage of the new Cisco® Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC). This switch can enable uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. The Cisco Catalyst 3650 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), and offer modular and field-replaceable redundant fans and power supplies. They can help you increase wireless productivity and reduce your TCO.
Products specifications
Attribute nameAttribute value
Width17.5"
Depth17.6"
Height1.73"
Weight15.9 lbs
Switch TypeManaged
StackableYes
Switching capacity176 Gbit/s
Number of VLANs4094
SFP+ module slots quantity4
Harmonized System (HS) code85176990
DHCP featuresDHCP server
Link aggregationYes
Access Control List (ACL)Yes
SSH/SSL supportYes
IGMP snoopingYes
IP routingYes
Rate limitingYes
Features
Internal memory4096 MB
Full duplexYes
SafetyUL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, GOST, NOM
LED indicatorsYes
Bandwidth160 Gbit/s
Noise level48 dB
Mean time between failures (MTBF)527580 h
Memory typeDRAM
Design
Form factor1U
Operational conditions
Operating temperature (T-T)-5 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)5 - 96 %
Operating altitude0 - 59055.1"
Non-operating altitude0 - 196850.4"
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Performance
Networking standardsIEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Auto MDI/MDI-XYes
Network
Multicast supportYes
Jumbo frames supportYes
10G supportYes
Quality of Service (QoS) supportYes
VLAN supportYes
Spanning tree protocolYes
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Management features
Web-based managementYes
Switch layerL3
Technical details
Product colorBlack
Power
AC input voltage100 - 240 V
Number of power supply units1
Redundant power supply (RPS) supportYes
Other features
Rack mountingYes
MAC address table32000 entries
Memory
Flash memory2000 MB
*
*
*
Products specifications
Attribute nameAttribute value
Width17.5"
Depth17.6"
Height1.73"
Weight15.9 lbs
Switch TypeManaged
StackableYes
Switching capacity176 Gbit/s
Number of VLANs4094
SFP+ module slots quantity4
Harmonized System (HS) code85176990
DHCP featuresDHCP server
Link aggregationYes
Access Control List (ACL)Yes
SSH/SSL supportYes
IGMP snoopingYes
IP routingYes
Rate limitingYes
Features
Internal memory4096 MB
Full duplexYes
SafetyUL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, GOST, NOM
LED indicatorsYes
Bandwidth160 Gbit/s
Noise level48 dB
Mean time between failures (MTBF)527580 h
Memory typeDRAM
Design
Form factor1U
Operational conditions
Operating temperature (T-T)-5 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)5 - 96 %
Operating altitude0 - 59055.1"
Non-operating altitude0 - 196850.4"
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Performance
Networking standardsIEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Auto MDI/MDI-XYes
Network
Multicast supportYes
Jumbo frames supportYes
10G supportYes
Quality of Service (QoS) supportYes
VLAN supportYes
Spanning tree protocolYes
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Management features
Web-based managementYes
Switch layerL3
Technical details
Product colorBlack
Power
AC input voltage100 - 240 V
Number of power supply units1
Redundant power supply (RPS) supportYes
Other features
Rack mountingYes
MAC address table32000 entries
Memory
Flash memory2000 MB
