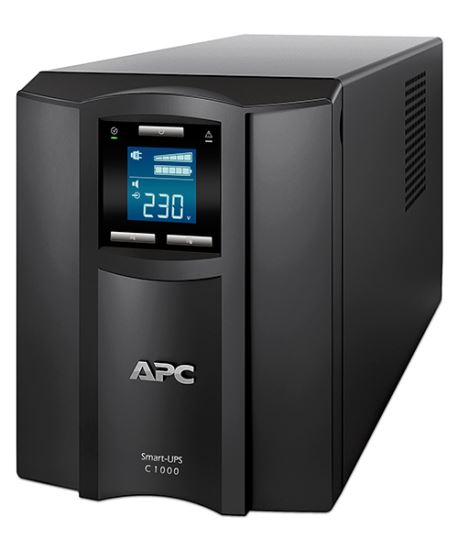

APC Smart-UPS Line-Interactive 8 AC outlet(s)1

APC Smart-UPS Line-Interactive 8 AC outlet(s)2

APC Smart-UPS Line-Interactive 8 AC outlet(s)

APC Smart-UPS. UPS topology: Line-Interactive, Waveform: Sine, Input operation voltage (min): 170 V. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 170 VAh, Typical backup time at full load: 6 min. Product color: Black, LED indicators: Status, Display: LCD. Width: 6.73" (171 mm), Depth: 17.3" (439 mm), Height: 8.62" (219 mm)

Manufacturers: Schneider Electric SA , APC

SKU: APWSMC1000I

Manufacturer part number: SMC1000I

GTIN: 0731304303688

APC Smart-UPS,600 Watts /1000 VA,Input 230V /Output 230V, Interface Port USB Includes: CD with software, USB cable, User Manual

Overview
Specifications
Contact Us

APC Smart-UPS,600 Watts /1000 VA,Input 230V /Output 230V, Interface Port USB Includes: CD with software, USB cable, User Manual

Products specifications

Attribute name	Attribute value
Battery Capacity	170 VAh
Width	6.73"
Depth	17.3"
Height	8.62"
Weight	38.1 lbs
Automatic Voltage Regulation (AVR)	Y
Battery Recharge Time	3 h
Input Frequency	50/60 Hz
Display	LCD
Quick installation guide	Y
Battery life (max)	5 year(s)
Automatic battery test	Y
UPS topology	Line-Interactive
Cold start	Y
Number of output IEC jumpers	2
Output frequency regulation	50/60 Hz
Software CD	Y
Auto-restart	Y
Features
Surge energy rating	455 J
Efficiency	98.3 %
LED indicators	Status
Noise level	41 dB
Audible alarm(s)	Y
Input operation voltage (min)	170 V
Input operation voltage (max)	300 V
Waveform	Sine
Packaging content
Cables included	USB cable
Design
Certification	CE, CSA, GOST, UL 1778, VDE, REACH, VDE-GS, EAC, C-Tick, IRAM, SABS
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95 %
Storage relative humidity (H-H)	0 - 95 %
Operating altitude	0 - 118110.2"
Non-operating altitude	0 - 590551.2"
Ports & interfaces
AC outlets quantity	8 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C14 coupler
USB port	Y
Technical details
Product color	Black
Sustainability certificates	RoHS, ENERGY STAR
Power
Nominal input voltage	230 V
Other features
Nominal output voltage	230 V
Packaging data
Package weight	43.2 lbs
Package width	12.9"
Package depth	23.4"
Package height	14.8"
Logistics data
Quantity per pallet	18 pc(s)
Quantity per master (outer) case	1 pc(s)
Battery
Battery technology	Sealed Lead Acid (VRLA)
Typical backup time at full load	6 min
Typical backup time at half load	16.3 min
Hot-swap battery	Y

Your name *

Your email *

Enquiry *

Products specifications

Attribute name	Attribute value
Battery Capacity	170 VAh
Width	6.73"
Depth	17.3"
Height	8.62"
Weight	38.1 lbs
Automatic Voltage Regulation (AVR)	Y
Battery Recharge Time	3 h
Input Frequency	50/60 Hz
Display	LCD
Quick installation guide	Y
Battery life (max)	5 year(s)
Automatic battery test	Y
UPS topology	Line-Interactive
Cold start	Y
Number of output IEC jumpers	2
Output frequency regulation	50/60 Hz
Software CD	Y
Auto-restart	Y
Features
Surge energy rating	455 J
Efficiency	98.3 %
LED indicators	Status
Noise level	41 dB
Audible alarm(s)	Y
Input operation voltage (min)	170 V
Input operation voltage (max)	300 V
Waveform	Sine
Packaging content
Cables included	USB cable
Design
Certification	CE, CSA, GOST, UL 1778, VDE, REACH, VDE-GS, EAC, C-Tick, IRAM, SABS
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95 %
Storage relative humidity (H-H)	0 - 95 %
Operating altitude	0 - 118110.2"
Non-operating altitude	0 - 590551.2"
Ports & interfaces
AC outlets quantity	8 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C14 coupler
USB port	Y
Technical details
Product color	Black
Sustainability certificates	RoHS, ENERGY STAR
Power
Nominal input voltage	230 V
Other features
Nominal output voltage	230 V
Packaging data
Package weight	43.2 lbs
Package width	12.9"
Package depth	23.4"
Package height	14.8"
Logistics data
Quantity per pallet	18 pc(s)
Quantity per master (outer) case	1 pc(s)
Battery
Battery technology	Sealed Lead Acid (VRLA)
Typical backup time at full load	6 min
Typical backup time at half load	16.3 min
Hot-swap battery	Y
