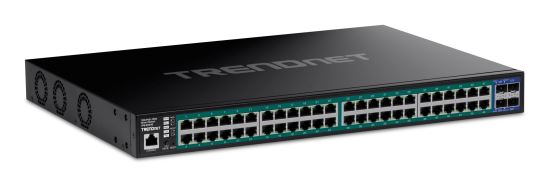

Trendnet TPE-3524S network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Trendnet TPE-3524S. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. Full duplex. MAC address table: 32000 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Power over Ethernet (PoE). Rack mounting
Manufacturers: TRENDNET INC , Trendnet
SKU: 7706711
Manufacturer part number: TPE-3524S
GTIN: 0710931162509
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
TRENDnet’s 52-Port Gigabit Web Smart PoE+ Switch with 10G SFP+ ports, model TPE-3524S, offers advanced L2+ features with enhanced traffic management controls to meet the evolving demands of SMB networks. This rack mountable IPv6-ready managed switch comes with an intuitive web-based interface. Advanced managed switch features include LACP to group ports together to increase bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for SMB networks. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with the easy-to-use voice VLAN feature.

Free up router resources by offloading routing processes to the managed switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. The dynamic ARP inspection feature helps protect connected devices from man-in-the-middle attacks by discarding malicious and invalid ARP packets. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IP surveillance system performance, and minimize network traffic. This TRENDnet Web Smart Managed PoE+ Switch also feature 10G SFP+ ports to support long-distance fiber networking applications.

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s Web Smart Managed PoE+ Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. With this PoE+ managed switch, network PoE devices such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.



  • 48 x Gigabit PoE+ ports
  • 4 x 10G SFP+ ports
  • 410W PoE power budget
  • Easy-to-use web-based management interface
  • Supports IPv6, LACP, VLAN, QoS, and IGMP/MLD Snooping
  • IPv4/IPv6 Static Routing support
  • Bandwidth control per port
  • Private, Multicast, and Voice VLAN support
  • Smart fans
  • 176Gbps switching capacity
  • IEEE 802.1p QoS with queue scheduling support
  • NDAA / TAA compliant (U.S. and Canada only)
TRENDnet’s 52-Port Gigabit Web Smart PoE+ Switch with 10G SFP+ ports, model TPE-3524S, offers advanced L2+ features with enhanced traffic management controls to meet the evolving demands of SMB networks. This rack mountable IPv6-ready managed switch comes with an intuitive web-based interface. Advanced managed switch features include LACP to group ports together to increase bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring, making this a powerful solution for SMB networks. Improve voice performance by isolating and prioritizing VoIP traffic from normal data traffic with the easy-to-use voice VLAN feature.

Free up router resources by offloading routing processes to the managed switch by using the L2+ IPv4/IPv6 static routing feature to efficiently route traffic at the switch level. The dynamic ARP inspection feature helps protect connected devices from man-in-the-middle attacks by discarding malicious and invalid ARP packets. Take advantage of the available multicast and IGMP/MLD snooping features to optimize IP surveillance system performance, and minimize network traffic. This TRENDnet Web Smart Managed PoE+ Switch also feature 10G SFP+ ports to support long-distance fiber networking applications.

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet’s Web Smart Managed PoE+ Switches by delivering up to 30W per port of PoE power and data over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. With this PoE+ managed switch, network PoE devices such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, access controls, and more.



  • 48 x Gigabit PoE+ ports
  • 4 x 10G SFP+ ports
  • 410W PoE power budget
  • Easy-to-use web-based management interface
  • Supports IPv6, LACP, VLAN, QoS, and IGMP/MLD Snooping
  • IPv4/IPv6 Static Routing support
  • Bandwidth control per port
  • Private, Multicast, and Voice VLAN support
  • Smart fans
  • 176Gbps switching capacity
  • IEEE 802.1p QoS with queue scheduling support
  • NDAA / TAA compliant (U.S. and Canada only)
Products specifications
Attribute nameAttribute value
Width17.3"
Depth12.2"
Height1.73"
Weight10.5 lbs
Switch TypeManaged
Power SourceAC/PoE
Switching capacity176 Gbit/s
Power supply includedYes
Number of VLANs4094
SFP+ module slots quantity4
Power over Ethernet (PoE) power per port30 W
DHCP featuresDHCP snooping
Link aggregationYes
IGMP snoopingYes
Forwarding rate130.95 Mpps
Head-of-line (HOL) blockingYes
Power over Ethernet (PoE) type supportedPoE+
Half duplexYes
Features
Full duplexYes
Number of fans3 fan(s)
LED indicatorsYes
Noise level42.7 dB
Mean time between failures (MTBF)74330 h
Design
CertificationCE FCC UL
Operational conditions
Operating temperature (T-T)0 - 50 °C
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Power over Ethernet plus (PoE+) ports quantity48
Performance
Networking standardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3ba, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Reset buttonYes
Network
Ethernet LAN data rates10,100,1000,10000 Mbit/s
Multicast supportYes
Jumbo frames supportYes
Jumbo frames9000
10G supportYes
VLAN supportYes
Spanning tree protocolYes
Virtual LAN featuresPrivate VLAN, Tagged VLAN, Voice VLAN
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Technical details
Product colorBlack
Power
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Power protection featuresOver current, Short circuit
Total Power over Ethernet (PoE) budget410 W
Power consumption (max)57.4 W
Other features
Rack mountingYes
MAC address table32000 entries
Protocols
Management protocolsSNMP v1, v2c, v3
Data transmission
Packet buffer memory2 MB
*
*
*
