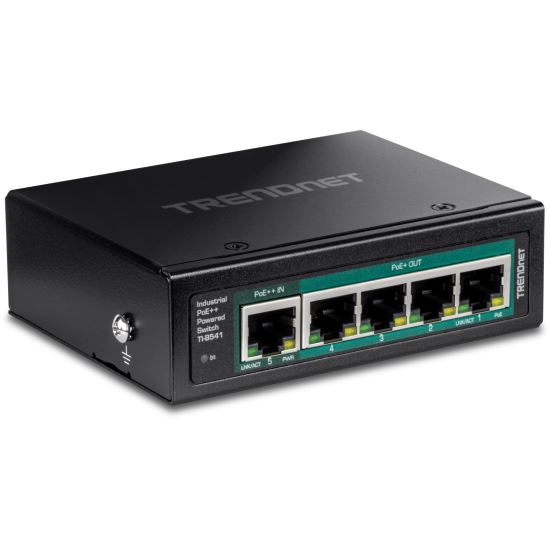

Trendnet TI-B541 network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black1
Trendnet TI-B541 network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black1
Trendnet TI-B541 network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black2

Trendnet TI-B541 network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Trendnet TI-B541. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE.... Power over Ethernet (PoE). Wall mountable
Manufacturers: TRENDNET INC , Trendnet
SKU: 7542549
Manufacturer part number: TI-B541
GTIN: 0710931162592
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
TRENDnet’s 5-Port Industrial Gigabit PoE++ Powered DIN-Rail Switch with PoE Pass-Through, model TI-B541, is powered by a PoE++ switch or injector, no AC adapter is required. The PoE-powered industrial switch features four gigabit PoE+ ports to power devices such as IP cameras, VoIP handsets, and wireless access points. The switch’s PoE++ powered feature allows it to be installed in a place where there is no power source nearby. With an operating temperature range of -40°– 75 °C (-40° – 167 °F), the hardened IP30 rated housing is suitable for extreme industrial environments.



  • 1 x Gigabit PoE++ input port
  • 4 x Gigabit PoE+ output ports
  • 65W PoE power budget with PoE++ Type 4 (90W) input power
  • 10Gbps switching capacity
  • Hardened IP30 rated metal switch
  • Includes DIN-Rail and wall mounts
  • Extreme operating temperature range of -40° - 75° C (-40° - 167° F)
  • NDAA / TAA compliant (U.S. and Canada only)
TRENDnet’s 5-Port Industrial Gigabit PoE++ Powered DIN-Rail Switch with PoE Pass-Through, model TI-B541, is powered by a PoE++ switch or injector, no AC adapter is required. The PoE-powered industrial switch features four gigabit PoE+ ports to power devices such as IP cameras, VoIP handsets, and wireless access points. The switch’s PoE++ powered feature allows it to be installed in a place where there is no power source nearby. With an operating temperature range of -40°– 75 °C (-40° – 167 °F), the hardened IP30 rated housing is suitable for extreme industrial environments.



  • 1 x Gigabit PoE++ input port
  • 4 x Gigabit PoE+ output ports
  • 65W PoE power budget with PoE++ Type 4 (90W) input power
  • 10Gbps switching capacity
  • Hardened IP30 rated metal switch
  • Includes DIN-Rail and wall mounts
  • Extreme operating temperature range of -40° - 75° C (-40° - 167° F)
  • NDAA / TAA compliant (U.S. and Canada only)
Products specifications
Attribute nameAttribute value
Width4.02"
Depth3.15"
Height1.22"
Weight5.64 oz
Housing MaterialMetal
Switch TypeUnmanaged
Power SourceDC/PoE
Switching capacity10 Gbit/s
Forwarding rate7.44 Mpps
Power over Ethernet (PoE) type supportedPoE+, PoE++ (4PPoE)
Half duplexYes
Power over Ethernet 4PPoE (PoE++) ports quantity1
Features
Full duplexYes
Wall mountableYes
International Protection (IP) codeIP30
Mean time between failures (MTBF)537083 h
Design
CertificationCE FCC LVD
DIN rail mountingYes
Operational conditions
Operating temperature (T-T)-40 - 75 °C
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Power over Ethernet plus (PoE+) ports quantity4
Performance
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Network
Jumbo frames supportYes
Jumbo frames9000
10G supportNo
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Technical details
Product colorBlack
Power
Total Power over Ethernet (PoE) budget65 W
Power consumption (max)3.9 W
Other features
Rack mountingNo
MAC address table2000 entries
*
*
*
